Industrial Grade Collapsible & Rigid IBC Solutions
Discover our comprehensive range of high-efficiency bulk liquid containers designed for seamless global freight, hazardous chemical transport, and sterile food processing.

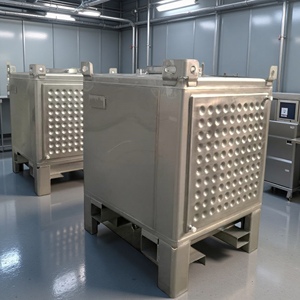

Food Grade Stainless Steel IBC Tank Tote 304/316 Heatable Containers
Heavy-duty heatable stainless steel totes with integrated insulation jackets for high-viscosity food liquids, syrups, and pharmaceutical products.
Inquire Now
1000L Foldable IBC for Transporting Wine, Liquid Food, Water, Chemicals
Galvanized steel collapsible frame IBC providing 4:1 return ratio efficiency. Ideal for bulk wine, liquid food ingredients, and non-hazardous chemicals.
Inquire Now

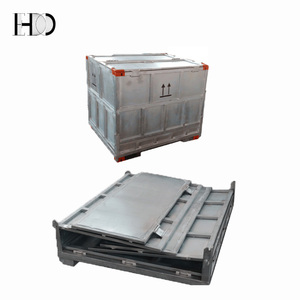

Collapsible IBC Tanks Foldable Steel Containers with High Quality
Rugged carbon steel folding bulk containers engineered for high-density dynamic stacking in global logistics and ISO sea container transport.
Inquire Now

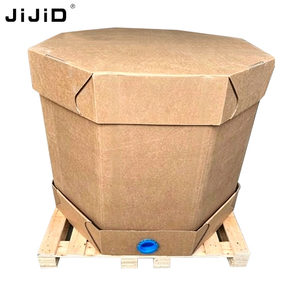

JIJID Foldable 900L Octagonal Paper IBC Collapsible Bulk Liquid Container
Eco-friendly 100% recyclable heavy-duty corrugated octagonal paper IBC. Designed for single-trip bulk liquid exports with zero return freight costs.
Inquire Now
1000L IBC Tank Collapsible Square Container Plastic Food-Grade Pallet Bin
Polymer-reinforced collapsible pallet containers with FDA-approved virgin liner bags. Perfect for hygienic handling of fruit juice concentrate and dairy.
Inquire Now

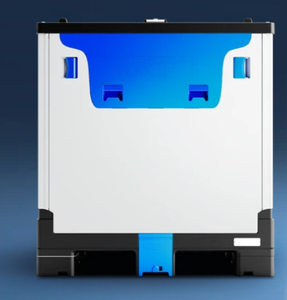

1250L Collapsible Liquid Storage Tank Food-Grade Disposable PP Material
High-capacity 1250L polypropylene collapsible tote system. Engineered for high volume liquid cargo, maximizing container cube utilization.
Inquire Now

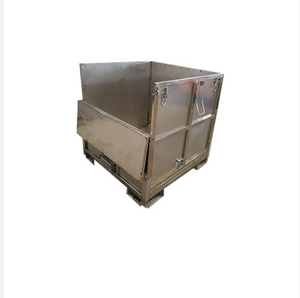

Collapsible IBC Tanks Foldable Stainless Steel Containers With High Quality
Precision-manufactured folding stainless steel IBC tanks featuring smooth interior walls, rapid collapse mechanics, and extreme chemical durability.
Inquire Now
Stainless Steel Pressure Vessel Storage Tank Custom Sizes ASME Standard
ASME-certified heavy-wall pressure vessel storage tanks available in horizontal and vertical configurations for hazardous diesel, fuels, and volatile chemicals.
Inquire NowWhy Global Procurement Leaders Choose Our Folding IBCs
As a premier Chinese original equipment manufacturer (OEM) and global exporter with decades of rigid packaging heritage, we operate state-of-the-art automated manufacturing plants delivering fully certified UN-compliant liquid logistics hardware.
UN & ISO Certified Compliance
Our full line of folding IBCs and pressure vessels undergo rigorous hydrostatic, drop, and vibration tests. We maintain complete UN 31A/Y packaging certifications for dangerous liquid chemicals alongside ISO9001 and FDA food-contact standards.
Custom OEM/ODM Engineering
From custom dimensions matching unique ISO sea container footprints to integrated heating jackets (steam or electric), our in-house engineering team customizes valve ports, liner retention clips, and stacking corner posts for specialized industrial applications.
Closed-Loop Sustainable Lifecycle
We directly empower global corporations to execute Scope 3 emissions reduction targets. By transitioning from rigid bottle-in-cage IBCs to collapsible steel tote architectures, enterprise fleets eliminate cross-contamination and dramatically shrink reverse-logistics carbon footprints.
The Economics & Materials Science of Collapsible Liquid Logistics
An authoritative comparative study on Total Cost of Ownership (TCO), volumetric return efficiency, and thermal dynamics in modern bulk fluid transit.
1. Structural Ergonomics and Return Logistics Optimization
Traditional rigid intermediate bulk containers—such as standard composite plastic bottles in tubular steel cages—present a severe structural inefficiency during empty return transport. A standard 1000L rigid IBC occupies roughly 1.2 cubic meters of payload volume regardless of whether it is completely full or entirely empty.
By contrast, our China-engineered folding IBC containers feature a 4:1 to 5:1 collapse ratio. When folded flat, a standard 40-foot high-cube shipping container that previously could only haul 42 empty rigid IBCs can now transport up to 180 folded IBC units. This 300% increase in return-leg volumetric density translates into immediate freight cost savings, mitigating empty-container repositioning fees across international ocean passages.
2. Comprehensive Technical Matrix: Rigid vs. Folding IBC Architectures
Choosing the optimal container dynamic requires evaluating material endurance, food-contact hygiene, tare weight, and thermal transfer requirements. The data visualization below outlines the performance characteristics of our primary product classes:
| Container Specification | Stainless Steel 304/316 Folding IBC | Galvanized Steel Foldable IBC | Octagonal Paper Bulk IBC | Standard Rigid Plastic IBC |
|---|---|---|---|---|
| Return Ratio (Empty) | 4:1 to 5:1 Collapsible | 4:1 Collapsible | 100% Flat-Pack Single Trip | 1:1 Non-Collapsible |
| Tare Weight (1000L) | 135 kg - 165 kg | 95 kg - 115 kg | 32 kg - 45 kg | 55 kg - 65 kg |
| Max Stacking Load (Static) | 1 + 5 Fully Loaded | 1 + 4 Fully Loaded | 1 + 1 Fully Loaded | 1 + 1 Fully Loaded |
| Thermal Heating Compatibility | Integrated Steam / Electric Pad | Bottom Heating Mat Compatible | Liquid Warm-Pad Compatible | Limited (Hot Water Only) |
| Typical Reuse Lifecycle | 15+ Years (10,000+ Trips) | 7-10 Years (3,000+ Trips) | 1-2 Trips (Recyclable) | 3-5 Trips (Inner Bottle Wear) |
| UN Hazardous Goods Approval | UN 31A/Y Certified | UN 31A/Y Compatible Frame | Non-Hazardous Liquids Only | UN 31HA1 Certified |
3. Advanced Metallurgy & Thermal Control for Viscous Liquids
Handling viscous fluids such as palm oil, industrial resins, liquid glucose, and synthetic lubricants presents critical discharge challenges during cold-climate transportation. Standard rigid plastic IBCs risk structural deformation under elevated thermal heating.
Our Food Grade Stainless Steel Heatable IBC Tanks (AISI 304 / 316L) feature built-in steam trace channels and electric thermal jackets integrated directly beneath the metallic sump floor. Heat is transferred uniformly across the base, lowering fluid viscosity from over 10,000 cP down to pourable levels without scorching temperature-sensitive food ingredients or causing localized polymer breakdown.
Global Trends Driving the Shift to Collapsible Liquid Packaging
Key strategic insights for supply chain directors, procurement executives, and global freight managers navigating regulatory changes and ESG mandates.
1. IoT Telematics & Real-Time Fleet Intelligence
The next era of industrial bulk logistics relies on smart, sensor-enabled containers. Modern steel collapsible IBCs are rapidly adopting embedded low-power cellular and satellite IoT sensors. Procurement heads now demand real-time visibility over liquid payload volume, internal core temperature, hydrostatic pressure spikes, and geographic shock coordinates, enabling proactive disruption management.
2. Mandatory ESG Scope 3 Reporting & Zero-Landfill Packaging
Multinational chemical and food enterprises are facing intense regulatory oversight regarding single-use plastics and packaging waste disposal. The adoption of reusable collapsible steel frameworks combined with thin, recyclable food-grade PE/EVOH liner bags allows companies to achieve near-zero packaging landfill contributions while dramatically lowering corporate carbon intensity per ton-kilometer shipped.
3. Hybrid Paper-Plastic Octagonal Containers for Single-Trip Exports
For long-distance, asymmetric trade routes where returning empty containers is economically unviable (such as Asia-to-South America routes), octagonal heavy-duty corrugated paper IBCs are replacing traditional steel drums. Packing 900L to 1000L into a single flat-pack unit lowers initial unit acquisition costs while providing structural resistance against lateral bulging.
4. Automated Clean-In-Place (CIP) & Sterile Processing Integration
Pharma and food ingredient supply chains are enforcing stringent aseptic protocols. Stainless steel folding containers designed with radiused internal corners, electropolished welds, and steam-sterilizable top/bottom discharge valves allow rapid automated cleaning cycles, preventing batch cross-contamination during multi-product chemical turnarounds.
Frequently Asked Questions (FAQ) for Global Buyers
Expert technical answers addressing common engineering, logistics, and order customization questions.
Accelerate Your Liquid Logistics Efficiency Today
Connect directly with China's leading folding IBC container technical engineers. Request factory-direct wholesale pricing, dynamic CAD drawings, or custom UN compliance documentation for your fleet.
