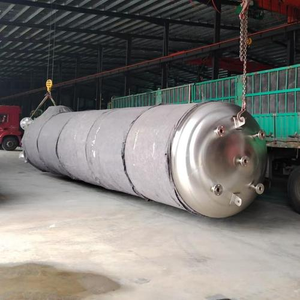

Food Grade 100000 Liter Stainless Steel Storage Tank Pump Engine Horizontal IBC Tank
Stainless Steel IBC Tank With UN Certificate 1000 Liter Storage Tanks

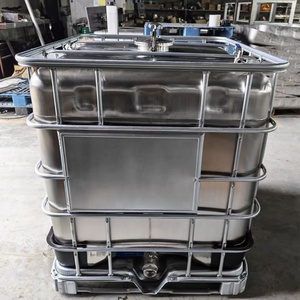

JST 1000L Multi-Use Stainless Steel IBC Totes Tank DN50 Ball Valve EU/ISO Certified
Stainless Steel IBC Tank Storage of Metal Powder with Mixer/without Mixer
Stainless Steel Pressure Vessel Storage Tank Vertical/Horizontal ASME Custom
SS304/SS316L China UN Approved 1000L / 1500L IBC Tote Tank Manufacturer
Customize 500L 1000L 1500L 2000L IBC Tank Stainless Steel Tote Tank Containers
Metallurgical Architecture: SS304 vs. SS316L Engineering Selection
When sourcing rigid industrial intermediate bulk containers (IBCs) from China wholesale manufacturers, global B2B procurement officers must evaluate material chemistry against chemical aggression, operational temperatures, and regulatory mandates. Stainless steel IBC totes offer unmatched structural durability, fire resistance, and full circular reusability compared to standard plastic composite HDPE totes.
The choice between AISI 304 (UNS S30400) and AISI 316L (UNS S31603) stainless steel forms the bedrock of long-term total cost of ownership (TCO) and risk mitigation for hazardous transport.
| Metallurgical Parameter | AISI 304 Stainless Steel | AISI 316L Stainless Steel | Impact on B2B Operations |
|---|---|---|---|
| Chromium Content | 18.0% - 20.0% | 16.0% - 18.0% | Forms passive chromium oxide (Cr2O3) layer preventing atmospheric corrosion. |
| Nickel Content | 8.0% - 10.5% | 10.0% - 14.0% | Stabilizes austenitic structure, enhancing ductility and cold-temperature toughness. |
| Molybdenum (Mo) | None | 2.0% - 3.0% | Dramatically increases resistance to chloride pitting, acids, and marine environments. |
| Carbon Content (Max) | 0.08% | 0.03% (Low Carbon) | Prevents chromium carbide precipitation during welding, eliminating intergranular corrosion. |
| PREN Index | ~19.0 | ~25.0 | Pitting Resistance Equivalent Number; higher values represent superior chemical defense. |
| Target Media | Lube oils, non-corrosive chemicals, food pastes, water treatment agents. | Sulfuric/Nitric acid blends, active pharma ingredients (APIs), flammable solvents, liquid nitrogen. | Select based on chemical compatibility matrix to prevent catastrophic container failure. |
Engineering Technical Note: For highly corrosive active pharmaceutical ingredients (APIs) or high-temperature halogenated compounds, specialized Chinese factories can process Titanium-stabilized SS316Ti or Hastelloy linings, combined with electropolishing down to Ra < 0.2 µm for sterile cleanability.
UN 31A/Y Certification Standards & Hydrostatic Testing Protocols
International compliance for maritime (IMDG), rail (RID), and road (ADR) transport requires rigid steel IBCs for liquids to be certified under United Nations Group 31A packaging codes. Chinese OEM manufacturers producing for export execute rigorous quality assurance testing governed by ISO 16106 standards:
- Vibration Testing: 1-hour sinusoidal vibration test at peak acceleration to verify structural integrity of welds and frame mountings.
- Bottom Lift & Top Lift Testing: IBC totes are loaded to 2x Maximum Permissible Gross Mass and lifted via forklift channels or top lug positions without permanent deformation.
- Stacking Test: The IBC is subjected to a load equivalent to 1.8x the combined maximum permissible gross mass of all containers that may be stacked above it during transport (typically 3-high fully loaded).
- Hydrostatic Pressure Test: Internal pressure test executed at 2.0 Bar (30 PSI) gauge for 10 minutes to verify zero weld seam porosity and shell elasticity.
- Leakproofness Test: Air pressure test at 0.2 Bar (3 PSI) with immersion or bubble solution inspection applied to all valves, manways, and gasket interfaces.
Structural Ergonomics, Discharge Geometry & Sanitary Finishing
A critical source of hidden operational loss in liquid bulk logistics is product residue retention. High-end Chinese wholesale manufacturers utilize precision 3D CAD modeling and deep-drawing presses to fabricate sloped, slanting, or 60-degree cone-bottom base plates. This ensures 99.98% complete discharge of high-viscosity liquids, pastes, and metal powders.
Sanitary Polish Standards for Food & Pharmaceutical Compliance
Food-grade and pharmaceutical stainless steel IBC totes demand surface treatments that eliminate microscopic crevices where bacterial colonies (such as Listeria or Salmonella) can anchor. Surface roughness is controlled via automated mechanical polishing and chemical electropolishing:
- Industrial Chemical Finish (2B Finish): Standard mill finish annealed and descaled. Average roughness Ra 0.8 µm to 1.2 µm. Ideal for petrochemicals, lubricants, and bulk raw solvents.
- Food Grade Polish (Sanitary #4 Finish): Mechanical buffing with 180-240 grit abrasive media. Ra 0.4 µm to 0.6 µm. Meets FDA 21 CFR Part 177 requirements for edible oils, syrups, and flavor compounds.
- Pharma-Grade Electropolished Finish: Anodic electrochemical dissolution of surface iron particles, leaving a mirror-like chromium-rich surface with Ra < 0.2 µm to 0.4 µm. Full Clean-in-Place (CIP) and Steam-in-Place (SIP) compatible.
Supply Chain Information Gain: Advanced Chinese factories integrate automated robotic TIG welding cells equipped with Argon gas trailing shields. This eliminates interior weld oxidation ("sugar coating") and guarantees uniform penetration across all stress-bearing corner radiuses.
Future Sourcing Trends: Smart Telematics & Circular Life-Cycle Economics
As global enterprise organizations transition to Scope 3 carbon reduction targets and ESG compliance, the industrial packaging landscape is undergoing a systemic shift from single-use or limited-use plastic containers to intelligent, reusable stainless steel IBC fleets.
1. Telematics Integration & Smart IoT Sensors
Modern stainless steel IBC totes manufactured in China are increasingly customized with top-flange cutouts or integrated housings for ATEX/IECEx Zone 0 certified IoT telematics modules. Buyers now deploy real-time monitoring for:
- GPS & Geofencing Location Tracking: Eliminates container loss across international ocean freight lanes and customer storage yards.
- Real-Time Fill-Level Radar Sensors: Measures interior ullage continuously, pushing inventory alerts directly to enterprise ERP systems (SAP/Oracle).
- Pressure & Temperature Telematics: Crucial for volatile chemical intermediates and cryogenic or heated liquids to prevent over-pressurization during equatorial transit.
2. Total Cost of Ownership (TCO): Stainless Steel Totes vs. Plastic Composite IBCs
While the initial capital expenditure (CapEx) of a stainless steel 1000L IBC tote is higher than a plastic composite tote, a 15-year TCO financial analysis demonstrates drastic savings for high-volume chemical producers:
| Cost Factor (1000L Capacity) | Standard HDPE Composite IBC | SS304/SS316L Heavy Duty IBC | 10-Year Financial Impact |
|---|---|---|---|
| Useful Lifecycle | 1 to 3 Years (Bottle Replacement Needed) | 15 to 20+ Years (Endless Reconditioning) | SS IBC eliminates continuous repurchasing cycles. |
| Fire Risk & Insurance | Meltable shell; high insurance premiums | 100% Fireproof NFPA 30 compliant | Significant reduction in chemical plant insurance rates. |
| Spill Hazard Liability | Susceptible to puncture/cracking | Rugged 2.5mm steel shell withstands drops | Mitigates multi-million dollar environmental cleanup risks. |
| Residual Scrap Value | Near Zero / High disposal cost | High residual scrap metal value (~40% of material) | CapEx recovery at end of operational lifespan. |
