500L Eco-Heavy Duty

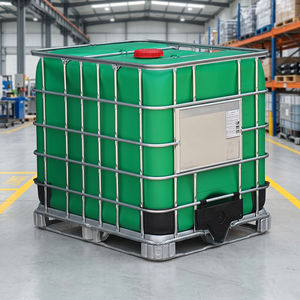

IBC Tote Tank Recyclable 500L Heavy Duty for Fertilizer Storage
- High-Density Polyethylene (HDPE) Inner Tank
- UV-Stabilized & Corrosion Resistant
- Heavy Duty Tubular Steel Outer Frame
Certified Rigorous Industrial Packaging
Featured Wholesale UN-Rated IBC Totes & Storage Containers
Direct factory supply of heavy-duty, UN-approved 500L to 2000L IBC totes, stainless steel pressure vessels, and industrial logistic crates engineered for chemicals, fertilizers, fuels, and pharmaceuticals.
Logistic Heavy Duty

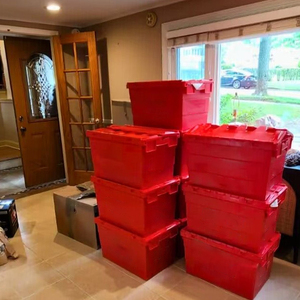

Large Heavy Duty Industry Tote Box Storage Stackable Plastic Containers
- Reinforced Stackable Corner Structure
- Impact Resistant Virgin PP/HDPE Resin
- Optimized for Logistic Distribution & Warehousing
UN Certified SS304/316

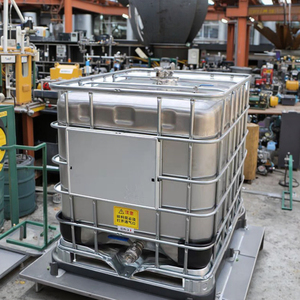

Stainless Steel IBC Tote Tank Chemical Transportation Equipment (106kg)
- Dimensions: 1200x1000x1150mm
- UN 31A/Y Standard for Hazardous Liquids
- 1 Year Factory Warranty & Structural Integrity
Thermal Insulated

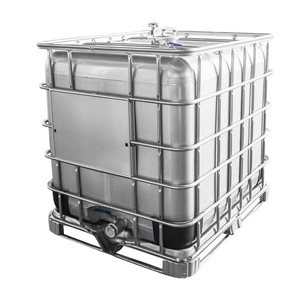

Insulated Large-Capacity 304/316 Stainless Steel IBC Totes for Ink & Waste
- Double-Wall Thermal Insulation System
- Ideal for Temperature-Sensitive Medicine & Inks
- Fully Dischargeable Sloped Bottom Design
ASME Pressure Vessel
Stainless Steel Pressure Vessel Storage Tank Vertical/Horizontal ASME Standard
- Engineered for Fuel, Diesel & High-Pressure Chemicals
- Customizable Volumetric Capacities & Fittings
- Precision Robotic Plasma Welding & X-Ray Testing
UN Approved 1000L/1500L
SS304/SS316L UN Approved 1000L & 1500L Stainless Steel IBC Tote Tank
- UN 31A/Y Certification for Offshore & Road Shipping
- Internal Acid Pickling & Electro-Polishing
- Heavy Duty Forklift Pockets & Stacking Legs
Modular Customization
Custom 500L 1000L 1500L 2000L Stainless Steel Intermediate Bulk Containers
- Volumetric Options: 500L up to 2000L Large Batch
- Customized Valve Assemblies (Ball/Butterfly)
- Specialized Gaskets: Viton, EPDM, PTFE
550 Gallon Cube Tank
550 Gallon Stainless Steel IBC Tote Cube Water & Fluid Tank
- High Volumetric Capacity (2080 Liters Equivalent)
- Heavy Gauge 304/316 Stainless Steel Shell
- Max Density Rating: Up to 1.9 g/cm³
100%
UN Certified Compliance
330+
Years Combined R&D Heritage
170+
Global Logistics & Service Sites
0.1%
Ultra-Low Defect Rate Assurance
Technical Sourcing Benchmark
Engineering Matrix: HDPE Composite vs. Stainless Steel UN IBC Totes
Navigating UN packaging codes requires a detailed comparison of chemical resistance, pressure ratings, reusability lifecycles, and certification benchmarks across various industrial container types.
| Specification Parameter | Composite HDPE IBC (31HA1) | Stainless Steel 304 (31A) | Stainless Steel 316L (31A) | ASME Pressure Vessels |
|---|---|---|---|---|
| UN Packing Group Rating | Group II & III (Y Rating) | Group I, II & III (X/Y Rating) | Group I, II & III (X/Y Rating) | Custom Hazardous Rating |
| Max Specific Gravity (Density) | Up to 1.9 g/cm³ | Up to 2.6 g/cm³ | Up to 3.0 g/cm³ | High Density Liquids |
| Operating Temperature Range | -18°C to +60°C | -40°C to +150°C | -50°C to +200°C | Extremes (-196°C to +300°C) |
| Chemical Compatibility | Fertilizers, Acids, Water Chemicals | Solvents, Lubricants, Resins | Corrosive Acids, Pharma, Inks | Volatile Fuels, High Pressure Gas/Liq |
| Test Hydraulic Pressure | 100 kPa - 200 kPa | 200 kPa - 400 kPa | 200 kPa - 600 kPa | Up to 10.0 MPa (ASME Code) |
| Expected Service Life | 2–5 Years (Liner Replacement) | 15–20+ Years (Reusable) | 20–25+ Years (Reusable) | 30+ Years (Indefinite lifecycle) |
| Environmental ESG Footprint | 100% Recyclable Frame | Zero-Waste Circular | Zero-Waste Circular | Maximum Lifecycle ROI |
Future Procurement Trends in Industrial Packaging (2026–2030)
Global logistics regulations are forcing B2B chemical purchasers to transition from single-use rigid packaging to fully closed-loop, reconditionable IBC systems. The primary shift revolves around three strategic pillars:
- Integration of PCR (Post-Consumer Recycled) Resins: Wholesale buyers now demand minimum 30% to 50% PCR content in outer cage components and non-contact outer layers without sacrificing UN drop-test integrity.
- Smart IoT Tracking & Telemetry: Next-generation UN rated stainless steel totes come equipped with ATEX-certified IoT sensors for real-time GPS tracking, internal pressure monitoring, and ullage volume sensing.
- Fluorination & High-Barrier Polymer Coatings: Level 5 fluorination treatments on HDPE inner bottles are replacing costly alloy metals for ag-chem liquid formulations prone to permeation.
Manufacturing Innovations in Chinese Export Giga-Factories
Leading Chinese IBC factories have evolved far beyond basic assembly lines. High-volume manufacturing plants now deploy automated robotic welding and precision blow-molding technologies to guarantee strict batch-to-batch consistency:
- Robotic Plasma & TIG Seam Welding: Stainless steel 304/316L totes feature zero-porosity continuous laser-guided welds that prevent bacterial buildup and stress cracking in chemical environments.
- Automated Hydrostatic & Air-Tight Leak Testing: 100% of manufactured UN 31A tanks undergo positive differential pressure tests to ensure zero leakage prior to international shipment.
- Chemical Passivation & Electro-Polishing: Advanced automated pickling lines deliver surface roughness ratings below Ra 0.4µm for ultra-pure pharmaceutical applications.
Why Partner With China’s Premier Exporter
Unrivaled OEM/ODM Scale, Quality Control & Supply Security
Leveraging over three centuries of combined structural packaging heritage and state-of-the-art Chinese manufacturing facilities, we deliver industrial totes engineered to survive the toughest global maritime routes.
Rigorous UN Certification
Fully compliant with UN 31HA1, UN 31A, IMDG, ADR, and RID standards for transporting dangerous goods across Packing Groups I, II, and III.
Global Footprint & Fleet Service
Seamless logistics support with localized distribution networks spanning over 170+ service hubs worldwide, ensuring rapid container turnaround.
Custom Valve & Fitting Specs
Choose from 2-inch to 3-inch DN50/DN80 butterfly valves, ball valves, quick-cam couplers, and specialized Viton, EPDM, or PTFE gaskets.
Total Cost of Ownership (TCO)
Direct wholesale factory pricing combined with multi-trip reconditionable containers delivers up to 40% reduction in long-term packaging costs.
Strict Drop & Stacking Testing
Every design iteration undergoes 1.9m cold-temperature drop tests, 28-day vibration testing, and 3-high stacking load validations.
Circular Economy Leadership
End-of-life tote collection, washing, re-bottling, and recycling programs that support corporate ESG and zero-landfill mandates.
Procurement & Regulatory Guidance
Frequently Asked Sourcing Questions (FAQ)
Everything global logistics managers need to know about UN ratings, chemical compatibility, container customization, and shipping logistics.
What does a UN Rating on an IBC Tote mean, and how do I interpret the code?
A UN rating certifies that the container has passed international performance tests for transporting hazardous materials under UN Dangerous Goods regulations. For example, a code like UN 31HA1/Y/05 24/CN/MAUSER indicates: 31 (Intermediate Bulk Container for liquids), HA (Composite outer steel frame with inner plastic vessel), 1 (Rigid inner container), Y (Certified for Packing Groups II & III), 05 24 (Month and Year of manufacture), and CN (Approved by Chinese UN certifying authority).
When should I choose Stainless Steel (SS304/SS316L) over Composite HDPE IBC Totes?
Stainless steel IBC totes (UN 31A) should be selected when handling highly flammable liquids, aggressive solvents, high-temperature liquids (>60°C), or ultra-pure food/pharmaceutical products requiring high sanitary standards. Stainless steel offers a 20+ year reusable lifespan and extreme fire resistance, whereas composite HDPE totes (UN 31HA1) are ideal for single-trip or short-cycle transport of fertilizers, water treatment chemicals, and non-flammable industrial liquids.
What valve types and gasket seal materials are available for wholesale export orders?
We offer an extensive range of discharge valves including integrated 2-inch and 3-inch DN50/DN80 butterfly valves, ball valves, and cylinder valves with male or female Camlock threads. Gasket materials are tailored to chemical compatibility: EPDM for polar solvents and acids, Viton (FKM) for hydrocarbons and oils, and PTFE (Teflon) encapsulated gaskets for extreme aggressive chemical resistance.
How many 1000L UN IBC Totes fit into standard 20ft and 40ft High Cube (HC) shipping containers?
Standard 1000L composite IBC totes (1200mm x 1000mm x 1160mm) are optimized for ISO intermodal transport:
- 20ft ISO Shipping Container: Fits 18 to 20 units (double-stacked depending on gross weight limits).
- 40ft High Cube (HC) Shipping Container: Fits 42 to 44 units (double-stacked).
Are OEM custom branding, color coding, and volumetric markings supported?
Yes, as a direct OEM/ODM manufacturer, we provide custom steel identification plates, serial barcode etching, RFID tag integration, custom cage powder coating, company logo screen printing, and specialized gallon/liter volume sight gauges molded directly into the plastic or stamped on metal vessels.
What quality assurance certifications accompany international wholesale shipments?
All exported UN-rated IBC totes are dispatched with a complete Quality Assurance Documentation Package, including ISO 9001:2015 certification, UN Dangerous Goods Type Test Certificates, Factory Hydrostatic Pressure Test Reports, Material Test Certificates (MTC 3.1 for Stainless Steel), FDA food-grade compliance statement (where applicable), and ASME U-stamp documentation for pressure vessels.
Streamline Your Bulk Packaging Supply Chain Today
Connect directly with our engineering and procurement team for bulk wholesale pricing, technical CAD drawings, chemical compatibility verification, and factory inspection schedules.
