Featured Industrial Bulk Containers (IBC Totes)
Certified for UN hazardous liquid shipping, food-grade sanitary processing, and heavy-duty global supply chain deployment.

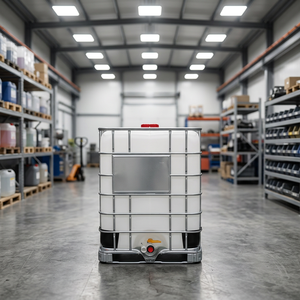

1000L Heavy Duty Plastic IBC Tote Tank
- Capacity: 1000 Liters / 275 Gallon
- Inner Container: High-Density Polyethylene (HDPE)
- Frame: Galvanized Tubular Steel Grid
- UN Marking: UN 31HA1/Y Certified

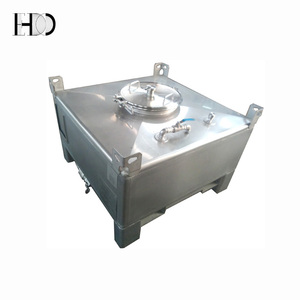

UN31A Intermediate Bulk Container Tote
- Application: Flammable & Toxic Chemicals
- Structure: Heavy Gauge Steel Outer Casing
- Pressure Rating: Test Pressure 200 kPa
- Compliance: IMDG Code, ADR/RID

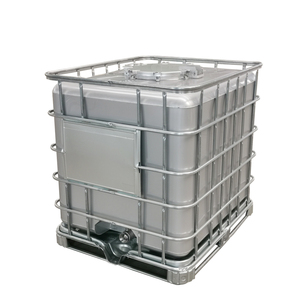

1000L Stainless Steel Chemical IBC Tank
- Material: AISI 304 / AISI 316L Stainless Steel
- Finish: Passivated Interior & Exterior
- Lifespan: 15+ Years Reusable Operational Life
- Customization: Agitators, Heating Jackets

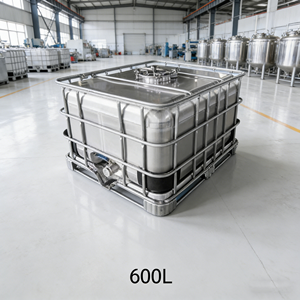

Food-Grade Sanitary Storage IBC Tank
- Capacity Range: 300L to 5000L Options
- Certifications: FDA, ISO 22000 Sanitary Standard
- Media Compatibility: Beer, Wine, Spirits, Oils
- Cleaning: CIP (Clean-In-Place) System Ready

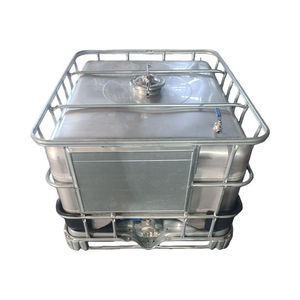

Metal IBC Tote for Organic Solvents & Fuel
- Media: Palm Oil, Solvents, Liquid Fuels
- Discharge: 2" or 3" Full Port Ball Valves
- Stackability: 3-High Fully Loaded Stacking
- Safety: Vacuum Pressure Relief Valves

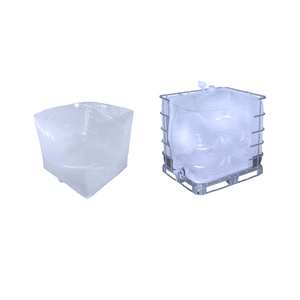

1000L Foldable Paper IBC Container
- Structure: Heavy Duty Corrugated Box Outer
- Liner Bag: Food-Grade PE/EVOH High-Barrier
- Freight Savings: 80% Space Saved on Return Return
- Eco-Status: 100% Recyclable Packaging

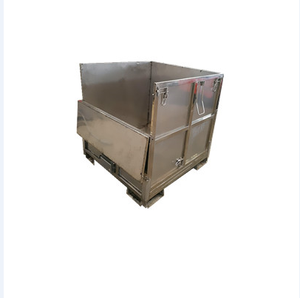

Stainless Steel Collapsible Liquid IBC Tank
- Design: Foldable Stainless Steel Outer Cage
- Reusability: 1000+ Operational Cycles
- Payload: 1000L Liquid Capacity
- Zero Cross-Contamination: Disposable Liners

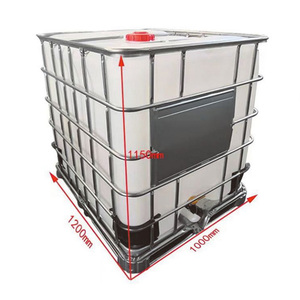

In-Stock 1000L Square HDPE/PP IBC Tanks
- Pallet Base: Steel, Plastic, or Wood Hybrid
- Discharge Valve: Integrated DN50 Butterfly Valve
- UV Protection: Stabilized HDPE UV Barrier
- Lead Time: Immediate Factory Shipping
In modern industrial logistics, the procurement of Intermediate Bulk Containers (IBCs) represents a critical juncture where supply chain efficiency, regulatory compliance, and total cost of ownership (TCO) converge. As global chemical manufacturing, food ingredient processing, and energy markets expand, procurement directors face unprecedented demands to optimize container fill ratios, eliminate transport risks, and comply with international maritime safety codes.
China has established itself as the world's primary manufacturing hub for industrial packaging, driving advancements in High-Density Polyethylene (HDPE) multi-layer co-extrusion blow molding, robotic stainless steel welding, and eco-friendly collapsible container systems. Evaluating top China bulk IBC totes factories requires moving beyond initial unit pricing to examine structural tensile strength, UN certification validity, resin purity standards, and factory quality assurance protocols.
Selecting the optimal container geometry and material composite directly impacts product shelf-life, cross-border hazard approvals, and return logistics economics. Below is an engineering evaluation matrix comparing primary bulk containment systems available from top Chinese suppliers:
| Containment Class | Primary Material Specs | UN Certification | Lifespan & Reusability | Target Industry Applications |
|---|---|---|---|---|
| Composite HDPE IBC | Blow-molded UV-stabilized HDPE inner tank + Galvanized steel grid frame | UN 31HA1 / Y Class | 3–5 Years (Reconditionable inner liner) | Industrial chemicals, agrochemicals, lubricants, liquid fertilizers. |
| Stainless Steel IBC (SUS304/316) | 2.0mm–3.0mm AISI 304 / 316L Stainless Steel with passivated welds | UN 31A / W Class | 15–20 Years (100% Infinite Reusability) | Volatile organic solvents, high-purity pharma, food oils, hazardous liquids. |
| Collapsible Paper IBC | Multi-ply heavy corrugated cardboard + Multi-layer EVOH liner bag | Non-Haz / Food Grade | Single-Trip / Disposable (Zero Return Freight) | Bulk food ingredients, juices, non-hazardous palm oil, bio-lubricants. |
| FIBC Bulk Bags (Jumbo Bags) | Woven Polypropylene (PP) with anti-UV coating & anti-static grounding | UN 13H3 / 13H4 | Single-Trip or Multi-Trip (5:1 / 6:1 Safety Factor) | Dry bulk powders, plastic pellets, minerals, sand, cement, grain. |
To adhere to international quality standards and mitigate supply chain disruptions, procurement specialists must perform rigorous engineering audits on Chinese manufacturing facilities. Leading OEM manufacturers maintain stringent Quality Management Systems (QMS) incorporating the following verification protocols:
- Polymer Purity & Extrusion Consistency: Premium factories utilize virgin High-Density Polyethylene (HDPE grade 5502BN or equivalent) engineered for environmental stress crack resistance (ESCR). Ultrasonic wall-thickness gauging ensures uniform material distribution (minimum 3.5mm base thickness) to prevent thin-spot failures during high-stacking load compression.
- UN Packaging Drop & Hydraulic Testing: Certified containers must undergo 1.9-meter drop testing at -18°C, hydraulic pressure testing at 100 kPa for 10 minutes, and bottom-lift/top-stacking load tests simulating dynamic oceanic vessel transit under maximum gross mass load.
- Robotic Frame Welding & Passivation: Stainless steel and galvanized steel outer frames must be welded using automated 6-axis robotic arms. Steel IBCs require full chemical passivation to eliminate free iron contaminants and preserve corrosion resistance against aggressive acid and alkali payloads.
- Valve Integrity & Gasket Permeability: Integrated discharge valves (DN50 butterfly or ball valves) undergo helium leak testing. Valve seats must utilize ETFE, Viton, or PTFE seals compatible with the specific chemical permeation profiles of the intended liquid cargo.
Beyond standard 1000-liter liquid composite IBCs, top Chinese suppliers provide specialized secondary and tertiary packaging containers essential for complete industrial logistics operations:

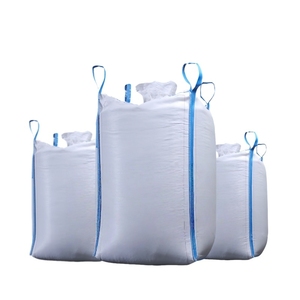

Heavy Duty 1-2 Ton FIBC Jumbo Bags
UV-treated PP woven bag with cross-corner loops for sand, cement & grains.

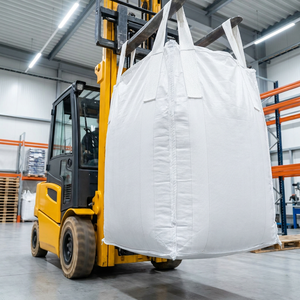

1.5t – 2t LDPE/PP Large Bulk Bags
Reinforced big bags designed for mineral, agricultural, and construction transport.

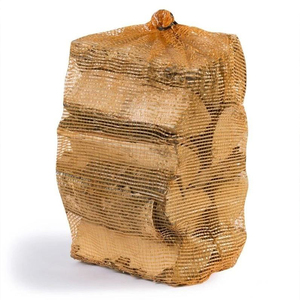

Vented Breathable PP FIBC Bags
Vented woven stripe design ideal for organic produce, firewood, and moisture control.

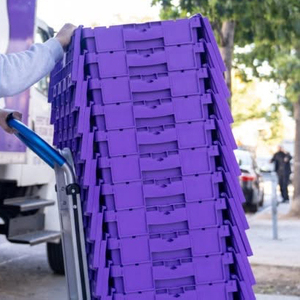

Plastic 56L–75L Nestable Tote Boxes
Solid stackable storage crates with attached lids for moving and distribution.

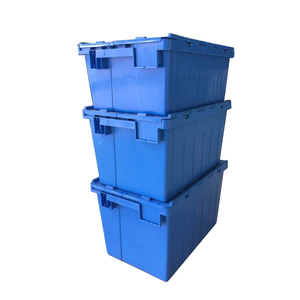

74L Heavy Duty Attached Lid Containers
High-density polypropylene nestable totes for secure warehouse logistics.

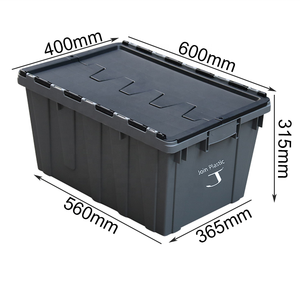

Automated System ASRS Logistics Totes
Reinforced base design for automated storage and retrieval systems (ASRS).

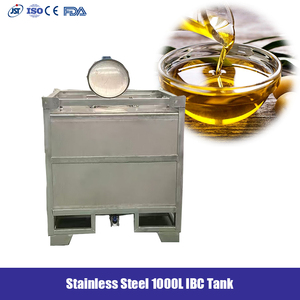

1000L Reusable Stainless Steel Oil Drum
Anti-rust SUS304 reusable oil container for heavy chemical and lubricant storage.

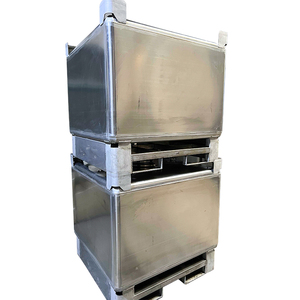

SS Cosmetic & Fine Chemical Buckets
Sanitary mirror-polished stainless steel tote buckets for cosmetics and lotions.
The global bulk packaging sector is undergoing a rapid transition driven by stringent ESG regulations, extended producer responsibility (EPR) mandates, and technological innovation. Enterprise buyers establishing long-term supplier relationships in China must consider three macro developments shaping the next decade of procurement:
A. Tri-Layer Co-Extrusion & Post-Consumer Recycled (PCR) Integration
Environmental legislation in the European Union and North America mandates increasing percentages of PCR resins in industrial containment. Advanced Chinese blow-molding operations utilize 3-layer co-extrusion technology. The inner layer consists of 100% virgin HDPE to ensure zero contamination of chemical or food payloads, the middle layer incorporates up to 30%-50% high-purity PCR resin for structural strength, and the outer layer provides UV stability and static dissipation.
B. Smart IoT Telemetry & Asset Tracking Integration
Modern bulk liquid logistics relies on real-time visibility. Next-generation stainless steel and composite IBCs are manufactured with integrated recessed ports for IoT telemetry sensors. These low-power GPS and satellite-connected devices transmit fill levels, internal liquid temperatures, pressure spikes, and geographic coordinates directly to supply chain management platforms, enabling predictive logistics and anti-tampering protection.
C. Transition to Circular Reconditioning & Collapsible Frameworks
Rising ocean freight tariffs have intensified the demand for returnable, space-saving designs. Collapsible paper IBCs and foldable stainless steel containers reduce empty return transport volume by up to 80%, substantially reducing carbon footprints per payload kilometer while allowing single-way intermodal shipping without container return liability.
